SFTT-1000 Automatic 2-Head Protein Powder Milk Powder Food Auger Filler Filling Machine
Product Overview
The SFTT-1000 is a high-performance automatic 2-head auger filling machine specifically designed for accurate and efficient packaging of dry powders such as protein powder, milk powder, whey powder, nutritional supplements, flour, spices, and other food-grade powders. This advanced powder filling machine utilizes a servo-driven auger (screw) filling system to deliver precise doses into containers ranging from bags and pouches to bottles and cans. With two independent filling heads operating simultaneously, the SFTT-1000 doubles production output while maintaining exceptional fill accuracy. As a versatile small powder filling machine, it is ideal for small to medium-scale manufacturers seeking a compact yet powerful solution. Built as a robust dry powder filling machine, it handles both free-flowing and non-free-flowing powders with minimal dust generation. Whether you need a dedicated filling machine powder for dairy-based products or a flexible system for various food powders, the SFTT-1000 delivers reliability, speed, and hygiene.
Key Features
1. Dual-Head Auger Filling System
Two independent servo-driven auger filling heads operate simultaneously, significantly increasing production speed.
Each head can be adjusted independently for different fill volumes or used to fill the same product into two containers at once.
Auger tooling is interchangeable for different powder densities and particle sizes.
2. High Precision & Consistency
Fill accuracy of ±0.5% to ±1% (depending on powder characteristics).
Microprocessor-controlled stepping motor ensures precise auger rotation and fill volume repeatability.
Suitable for both small and large fill weights, making it a versatile powder filling machine for various applications.
3. Handles a Wide Range of Powders
Designed as a true dry powder filling machine for protein powder, milk powder, whey, flour, baking powder, spices, coffee powder, and nutritional supplements.
Also handles non-free-flowing powders with optional vibration or agitator systems.
Ideal as a small powder filling machine for low to medium production volumes.
4. User-Friendly PLC Control
Intuitive touchscreen HMI for easy setup, fill weight adjustment, and recipe storage.
Real-time monitoring of production count, speed, and machine status.
One-button auto-calibration for quick changeover between different powder types.
5. Dust-Controlled Filling Environment
Enclosed filling zone with optional dust extraction port minimizes powder leakage and airborne dust.
Specially designed nozzle reduces powder splash and ensures clean container necks.
Easy-to-clean surfaces prevent cross-contamination between batches.
6. Quick Changeover & Easy Cleaning
Tool-less removal of auger, hopper, and filling nozzles for fast cleaning and product changeover.
Contact parts made of food-grade 304 stainless steel, compliant with GMP and FDA standards.
Smooth, crevice-free surfaces resist powder buildup.
Technical Parameters
Parameter | Specification |
|---|---|
Model | SFTT-1000 |
Machine Type | Automatic 2-head auger filler |
Filling Principle | Servo-driven auger (screw) filling |
Number of Filling Heads | 2 |
Filling Range (per head) | 5g – 5000g (customizable with different auger sizes) |
Filling Accuracy | ±0.5% – ±1% (product dependent) |
Production Speed | Up to 40–60 containers/minute (combined from both heads) |
Hopper Capacity | 50 L (standard), 100 L optional |
Suitable Powder Types | Protein powder, milk powder, whey, flour, spices, coffee, dry soup mixes, chemical powders |
Container Types | Bags, pouches, bottles, cans, jars |
Power Supply | 220V/380V, 50/60 Hz, 2.5 kW |
Air Pressure | 0.5–0.7 MPa (for bag clamp or container handling, if equipped) |
Machine Dimensions (L×W×H) | 1200 × 900 × 2000 mm (approx.) |
Machine Weight | Approximately 400 kg |
Control System | PLC + 7-inch Touchscreen HMI |
Options | Dust extraction system, vibratory tray, nitrogen flushing, conveyor integration, checkweigher |

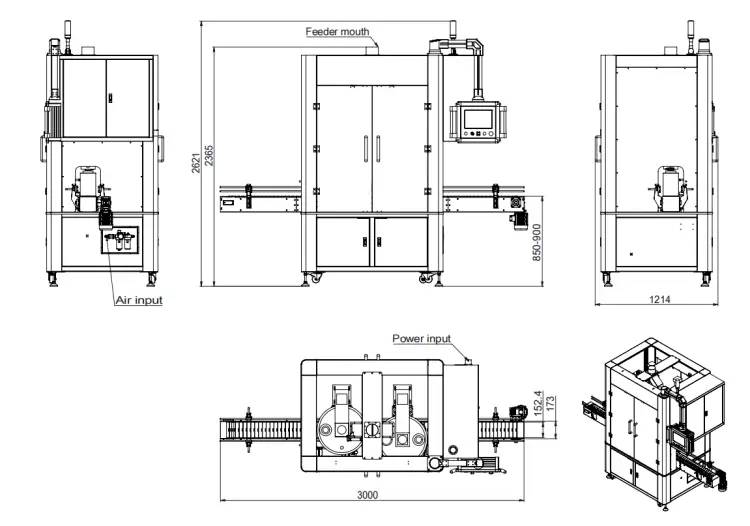

Drawing
Applications
The SFTT-1000 is a versatile powder filling machine suitable for a wide range of industries:
Food & Beverage
Protein powder (whey, plant-based, collagen)
Milk powder (infant formula, dairy powder, creamer)
Baking ingredients (flour, baking powder, cake mix)
Spices and seasonings (ground pepper, paprika, garlic powder)
Instant beverage powders (coffee, tea, hot chocolate, soup mixes)
Nutraceutical & Dietary Supplements
Nutritional powders (meal replacements, greens powders)
Vitamin and mineral powders
Herbal powders and traditional remedies
Chemical & Industrial
Detergent powders
Cosmetic powders (talc, face powder)
Agricultural powders (fertilizers, pesticides)
Advantages of SFTT-1000
Dual-Head Efficiency: Two filling heads double output without doubling floor space or cost.
Exceptional Accuracy: Servo-driven auger technology ensures consistent fill weights, reducing product giveaway.
Powder Versatility: Works as a dry powder filling machine for free-flowing powders and, with optional agitators, for non-free-flowing powders.
Hygienic Design: Food-grade stainless steel and quick-disassembly components meet strict food safety requirements.
Dust Reduction: Enclosed filling zone and anti-dust nozzles create a cleaner working environment.
Easy Integration: Can be combined with automatic baggers, bottle cappers, or conveyors for a complete packaging line.
