YL-3J Automatic Hand Soap Bottle Screw Capper Automatic Trigger Spray Bottle Capping Machine with Cap Feeder

Product Overview

The YL-3J is a versatile automatic capping machine designed specifically for screw capping applications in cosmetic, personal care, pharmaceutical, and household product packaging lines. This three-jaw capping system provides reliable and consistent cap tightening for hand soap bottles, trigger spray bottles, lotion pumps, and various other container types. Equipped with an automatic cap feeder, this bottle cap machine ensures continuous operation with minimal operator intervention, significantly improving production efficiency. As a compact small bottle filling and capping machine, the YL-3J integrates seamlessly into existing filling lines or operates as a standalone capping station. Whether you need precise torque control for delicate cosmetic caps or robust tightening for household chemical containers, this automatic capping machine delivers exceptional performance with quick changeover capabilities. Its three-jaw design ensures gentle yet firm gripping of caps, preventing damage to decorative finishes while achieving consistent seal integrity.

Key Features

1. Precision Three-Jaw Capping Mechanism

• Patented three-jaw chuck design provides uniform gripping force around the entire cap circumference.

• Gentle handling prevents scratching, scuffing, or deformation of decorative or branded caps.

• Adjustable gripping pressure accommodates various cap materials including plastic, aluminum, and composite.

• Suitable for both screw caps and snap-on closures.

2. Automatic Cap Feeder System

• Integrated vibratory bowl or elevator-type cap feeder ensures continuous cap supply to the capping head.

• Cap orientation and positioning mechanism ensures correct cap placement before tightening.

• Cap level sensor alerts operator when cap supply is low, preventing production interruptions.

• No cap, no bottle safety feature eliminates waste and machine jams.

3. Versatile Application Capability

• As a true automatic capping machine, handles screw caps, pump dispensers, trigger sprayers, flip-top caps, and child-resistant closures.

• Cap diameter range: 15 mm – 60 mm.

• Bottle height range: 50 mm – 250 mm.

• Quick changeover between different cap sizes with minimal tools and downtime.

4. Precise Torque Control

• Servo-driven or clutch-based tightening system ensures consistent and repeatable torque application.

• Digital torque adjustment via touchscreen interface for precise control.

• Real-time torque monitoring with data logging capability (optional).

• Eliminates under-tightening (leakage risk) and over-tightening (cap damage).

5. User-Friendly PLC Control System

• Intuitive touchscreen HMI for easy setup, recipe storage, and production monitoring.

• Recipe memory for multiple cap and bottle configurations.

• Self-diagnostic function with alert notifications for torque deviation, cap misfeed, or machine faults.

• Production counting and efficiency reporting.

6. Compact & Space-Saving Design

• Small footprint makes it ideal as a small bottle filling and capping machine for limited production spaces.

• Mobile frame with lockable casters for easy repositioning.

• Can be integrated with manual, semi-automatic, or fully automatic filling lines.

7. Hygienic & Durable Construction

• 304 stainless steel frame and product contact parts.

• Easy-to-clean surfaces meet GMP requirements for cosmetic and pharmaceutical applications.

• Corrosion-resistant components suitable for wet or humid environments.

8. No Cap – No Bottle – No Fill Integration

• Synchronization with upstream filling equipment via sensor signals.

• Prevents capping when bottles are absent or misaligned.

• Ensures smooth, waste-free production flow.

Technical Parameters

Configuration

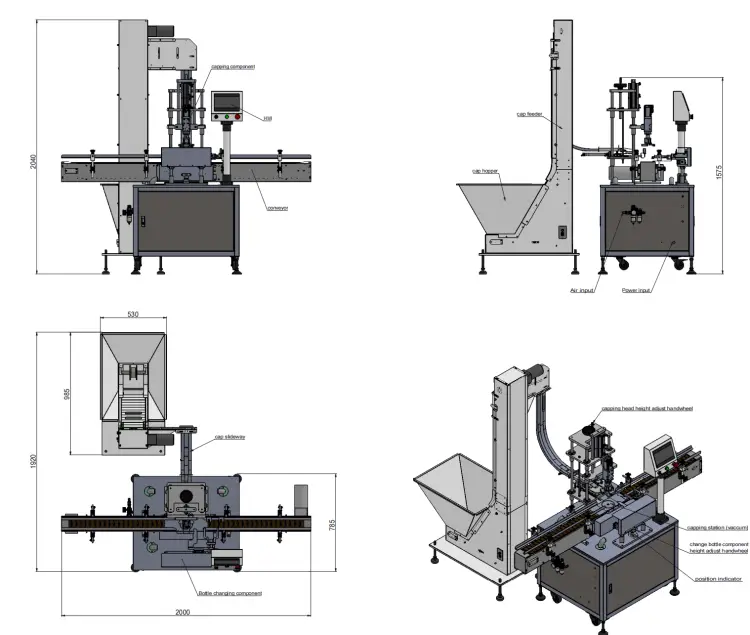

Drawings

Applications

The YL-3J automatic capping machine is the preferred choice for industries requiring precise, reliable capping of various container types:

Personal Care & Cosmetics

• Hand soap bottles with pump dispensers or screw caps.

• Lotion and cream bottles with lotion pumps.

• Shampoo and conditioner bottles with flip-top or screw caps.

• Perfume and fragrance bottles with decorative caps.

• Body wash and shower gel containers.

Household Products

• Trigger spray bottles for cleaning products, glass cleaners, and all-purpose cleaners.

• Liquid detergent and fabric softener bottles.

• Disinfectant and sanitizer containers.

Pharmaceutical & Healthcare

• Medicine bottles with child-resistant closures.

• Liquid pharmaceutical containers.

• Nasal spray and topical solution bottles.

Food & Beverage

• Salad dressing and sauce bottles with screw caps.

• Beverage bottles with sports caps.

• Honey and syrup containers.

Why Choose YL-3J?

1. Specialized Capping Solution: Designed specifically for screw cap applications, the three-jaw design ensures uniform tightening without damaging caps or bottles.

2. Integrated Cap Feeder: Eliminates manual cap placement, increasing production speed and reducing labor costs.

3. Compact & Efficient: As a small bottle filling and capping machine, it fits perfectly in limited spaces while delivering production speeds up to 80 bottles per minute.

4. Versatile Compatibility: Handles a wide range of cap sizes and styles, making it ideal for contract packagers and manufacturers with multiple SKUs.

5. Precision & Consistency: Digital torque control ensures every bottle receives the same tightening force, eliminating quality variations.

6. Easy Changeover: Quick-change tooling allows fast switching between different cap and bottle sizes, minimizing downtime.

7. Reliable & Durable: Built with high-quality components and stainless steel construction for long-term reliability.

How It Works

1. Cap Feeding: Caps are automatically oriented and fed from the vibratory bowl or elevator to the capping head.

2. Bottle Infeed: Bottles enter the capping station via conveyor or manual placement.

3. Cap Pick-Up: The three-jaw chuck picks up a cap from the feeder.

4. Positioning: The chuck aligns the cap with the bottle neck.

5. Tightening: The chuck rotates with controlled torque to tighten the cap securely.

6. Release: The chuck releases the capped bottle, which exits via conveyor.

7. Repeat: The cycle continues continuously.

Optional Accessories

• Infeed/Outfeed Conveyor: For integration with automatic filling and labeling lines.

• Torque Monitoring System: Real-time torque data collection and reporting for quality assurance.

• Cap Elevator: Bulk cap storage with automatic feeding for extended production runs.

• Rejection Station: Automatic removal of improperly capped bottles.

• Cleanroom Configuration: Enhanced dust protection and smooth surfaces for pharmaceutical applications.

Conclusion

The YL-3J Automatic Hand Soap Bottle Screw Capper is a versatile, reliable, and efficient automatic capping machine designed for demanding production environments. As a complete bottle cap machine with integrated cap feeder, it offers hands-off operation, consistent torque control, and quick changeover capabilities. Whether you need a small bottle filling and capping machine for a startup or a high-speed capping solution for established production lines, the YL-3J delivers exceptional performance and value.

For pricing, technical consultation, or to request a demonstration, please contact our sales team. We offer customized solutions based on your specific cap and bottle requirements.
